In 1957, Ernest J. Kump, Jr. (1911-1999) published a short manifesto in the AIA Journal entitled “A New Architecture for Man.” Kump imparted what he believed to be “basic truths and principles underlying the nature of architecture.”[i] Chief among these was that architecture at its core was the “expression of feeling through ordered space environment” and that the basic unit of architectural vocabulary was not material, but modular space.[ii] Following this premise, Kump advocated for an approach to architectural design based on the “cellular organization of organic units of space environment.”[iii] He believed that if architects could create modular spatial units that were self-contained, attractive, and flexible, they could realize “for the first time true organic three-dimensional planning.”[iv] The results would be a marriage of order, variety, and economy, and a better architecture for man.

Ernest Kump wrote “A New Architecture for Man” at the midpoint of his more than forty-year career in architecture. A student of Walter Gropius, the native Californian was a respected Modernist and nationally-recognized school facility designer. His manifesto both synthesized architectural concepts from his early work and served as a visionary statement for future projects. Using modular planning in his designs throughout his career, applying the concept to everything from campus plans to suburban housing, Kump was devoted to the notion that buildings could, and should be mass produced. He incorporated elements of prefabrication in nearly all his projects and experimented with manufactured materials and prefabrication methods. Kump often partnered with engineers, builders, and manufacturers to refine his ideas, and eventually held fifty-nine patents for prefabricated building components, methods, and system concepts. His novel modular and prefabricated building systems present a series of innovative arrangements of cellular space.

Acalanes Union High School, Lafayette, California – Franklin & Kump – 1940

In 1945, the Museum of Modern Art selected the Acalanes Union High School for its exhibit “Built in the USA – Since 1932,” an important early showcase of Modern buildings in the United States. According to Architectural Record, Kump’s “finger-plan” school succeeded in “beheading that sacred cow of school boards—the idea that the structure should be a big, imposing edifice denoting solid virtue and civic pride.”[v] Instead, Kump looked to principles of “plant layout planning” to design a low-rise complex of single-story buildings organized along a grid of open corridors.[vi] The plan allowed easy addition and expansion over time by extending the corridor grid to add classroom, administrative, or recreational units. The first phase of the campus, shown in Image 1A, grew over the next ten years to include six more classroom blocks, a library, and a second gymnasium. The steel-frame, single-pile classroom wings had similar flexibility, with four-foot modular plans and non-load bearing exterior and interior panel walls. The school could easily reconfigure each space by simply relocating interior panel partitions.

U.S. Navy Demountable Barracks – Kump & Falk – 1943

During World War II, Kump and his partner, civil engineer Mark Falk, designed prefabricated, demountable buildings for Federal Works Agency defense projects and the U.S. military. This barracks building for the U.S. Navy employed a modular prefabricated truss frame and wood panel wall and roof system. The building required minimal expertise or tools to construct, and workers could quickly disassemble, crate, transport, and reassemble the building when the Navy relocated temporary wartime installations.

University Park, Palo Alto, California - Ernest Kump Associates with Barrett & Hilp – 1953

After World War II, Kump designed prefabricated, modular housing systems as solutions to the postwar domestic housing shortage. Kump’s best known prefabricated design was the 1945 “Prebilt House” in partnership with Mark Falk and architects Wurster & Bernardi. The house used a laminated, plywood “arch-rib” frame and panel walls and roof systems. After the necessary site preparation, workers could assemble the building using only a hammer and screwdriver.[vii] By 1953 when Kump partnered with suburban builders Barrett & Hilp on a modular-plan, a prefabricated house design for their University Park project, Kump had refined his prefabricated systems to eliminate many aspects of field assembly. The University Park houses were a system of nested prefabricated modular units. Based on shop facilities, construction site conditions, and available transport, builders could choose to prefabricate sub-modules such as kitchens or baths, or assemble those sub-modules into larger prefabricated bay units before transporting them to the construction site. Barton & Hilp constructed the first 900 square-foot, three‑bedroom, one-bath house destined for University Park under Kump’s supervision.[viii]

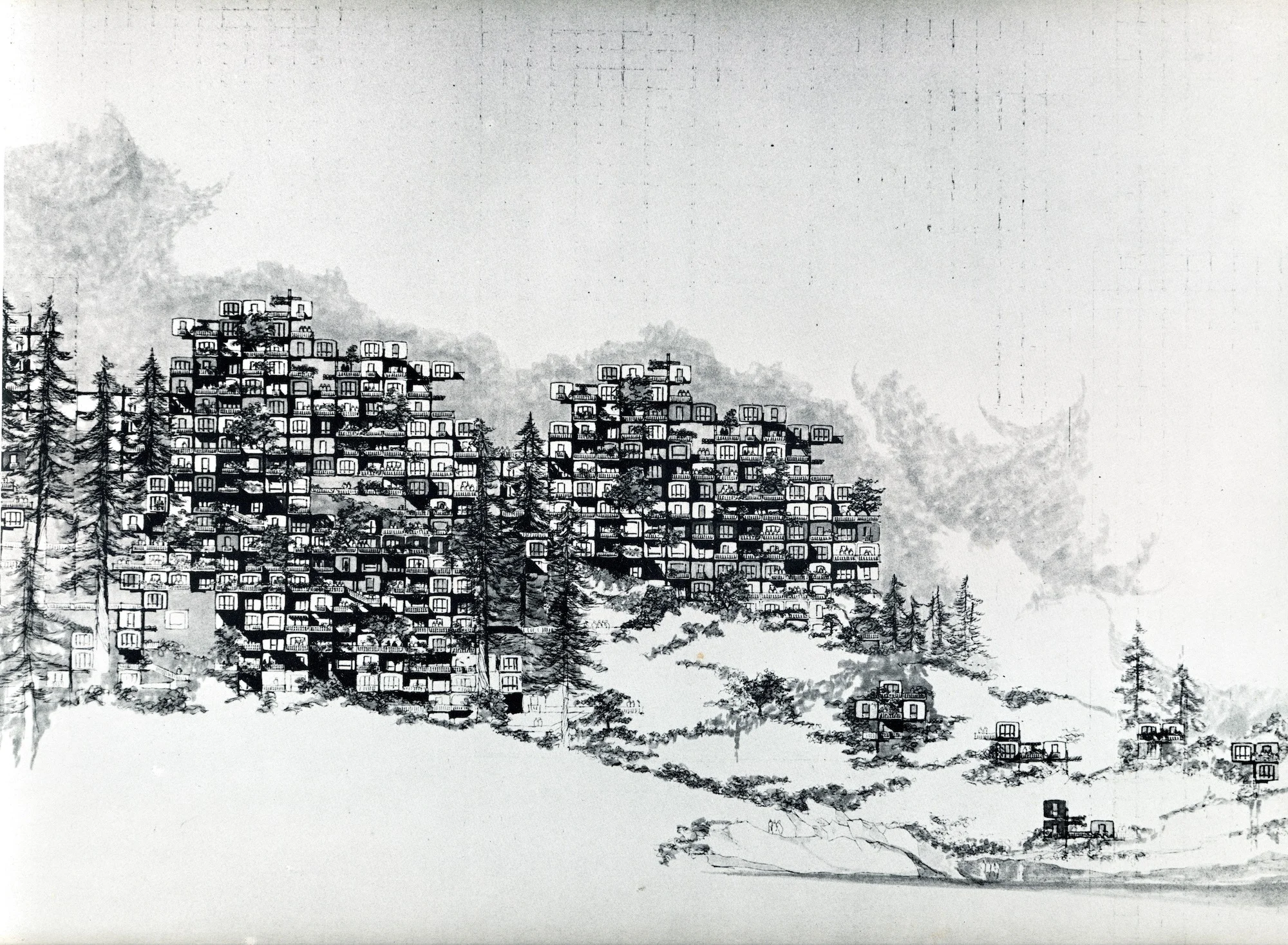

The Tekkto System – Ernest Kump Associates – 1970

The Tekkto System was Kump’s realization of his vision from “A New Architecture for Man.” The modular “space pod” system was his purest expression of architecture as the cellular organization of units of space. “The space pod,” Kump wrote, “is a veritable building block of livable space environment, with which one can build not stereotyped but diverse forms: individual dwellings, a village, or a multi-storied neighborhood. This means that, for a change, human desires, and not the system, can determine the plan and type of each individual dwelling.”[ix] The Tekkto system consisted of demountable, molded fiberglass pods that came in residential, educational, and commercial versions set into an expandable space frame. Pods had uniform openings on all sides to serve as doors, windows, or connections to adjacent units, as well as self-contained plumbing, electrical and environmental systems. Kump designed the pods to be mass produced, easy to assemble, and portable. The top and bottom of pod units formed the unit shipping container and disassembled units could be erected by four men in an hour. Kump marketed Tekkto as a solution to the U.S. housing shortage in the early 1970s, and later partnered with the United Nations Industrial Development Organization to explore use of Tekkto for housing in developing countries. The project entered the research and development phase, but was never realized.

[i] Ernest J. Kump, “A New Architecture for Man,” American Institute of Architects Journal 28 (1957): 392.

[ii] Ibid., 392.

[iii] Ibid., 397.

[iv] Ibid.

[v] “Pioneer School has Proved the Value of its Scientific Design in Eight Years of Orderly Growth,” Architectural Forum 91 (1949): 104.

[vi] “Acalanes Union High School, Lafayette, Calif,” Architect & Engineer 184 (February 1951): 23.

[vii] “Prefabrication for Flexible Planning,” Architectural Record 98 (1945): 98.

[viii] Ernest J. Kump and Ernest J. Kump, “Prefabricated Building Construction,” April 28, 1959, http://www.google.com/patents/US2883711; “For Fast Sales,” House & Home 3 (April 1953): 105–106.

[ix] Ernest Kump, “Draft Patent Application for Volkshaus: Modular Space Pod Housing,” March 17, 1970, 2, Ernest Kump Collection, Environmental Design Archives, University of California, Berkeley.
